pcb jamma boards

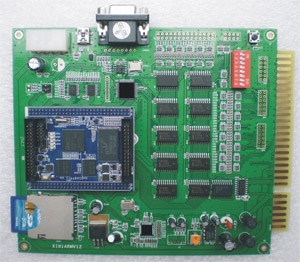

48-in-1 Arcade Classics Info: Jamma Arcade Board   Display: Vertical Retail: $300.00 Sale SOLD OUT Click on image for Information

60-in-1 Arcade Classics Info: Jamma Arcade Board   Display: Vertical Retail: $350.00 Sale $179.95 Click on image for Information

CGA TO VGA CONVERTER US A LCD IN YOUR ARCADE GAME

$79.95 This CGA/EGA/YUV to VGA Converter PCB allows all types of RGB, EGA, VGA or YUV component signals to be up-converter and display on a 31KHz PC VGA monitor, TFT monitor, LCD display, or HD-TV with VGA connection. No need to set dip switches in order to figure out the specific input frequency as all inputs are detected automatically! A great alternative to purchasing a expensive, heavy CGA monitor. Use this converter with an existing computer monitor or install a light-weight LCD display or even use to build your own supergun!

See how simple the setup can be with this basic setup guide: -Click to view the basic setup guide-


Features/Specifications:
Supports CGA/EGA/VGA/YUV Component Signal Input
Supports VGA Output (640 x 480, 800 x 600, 1024 x 768, 1360 x 768)
CGA/EGA/VGA signal auto scan (15KHz, 24KHz, 31KHz)
YUV Component signal auto scan (480i, 576i, 720i, 1080i, 480p, 576p, 720p, 1080p)
On Screen Display (English and Chinese)
Supports image position control & image zoom control
True digital 24-bit A/D converter for true 16.7-million color conversion.
Supports ALL types of VGA monitors (CRT, LCD, PDP, Projector, etc)


Input Power 5VDC +/- 0.5v (2A) P7 or P9
Input signal CGA/EGA 14.5kHz - 16.5kHz
23.5kHz - 25.5kHz
30.5kHz - 32.5kHz Auto scan P3 or P11 or P10
RGBHV 30.5kHz - 32.5kHz Auto scan P10 or P11
VGA 30.5kHz - 32.5kHz Auto scan P10 or P11
Ypbpr 480p,576p,720p,1080p Auto scan P2
Ycbcr 480i,576i,720i,1080i Auto scan P2
Output signal VGA 640*480,800*600
1024*768,1360*768 P4 and P13
User controls Input Switch, Image Zoom, Image Position,
Output Resolution ,R\G\B gain adjust. Menu Key
R\G\B VR


This Kit contains:
GBS-8220 Model HD-Converter PCB
Power Cable
RGB Cable


Obsolete IC's arcade

WE HAVE SOME IN STOCK

1LQ2 16 pin dip USED IN ANYTIME PIZZA MACHINE

L9224H L9227H 16 PIN DIP $40.00 ea

TMS9928A  or  TMS9928   video IC's as used on Granny & the Gators as well as Baby Pacman  $25.00 ea

ANYTIME PIZZA MACHINE

I HAVE DONE SOME WORK ON THE ANYTIME PIZZA MACHINE

MOTHER BOARD UPGRADES

AND TROUBLESHOOTING AND REPAIR OF IO BOARDS

valley spectra IV pinball tabletop cocktail
